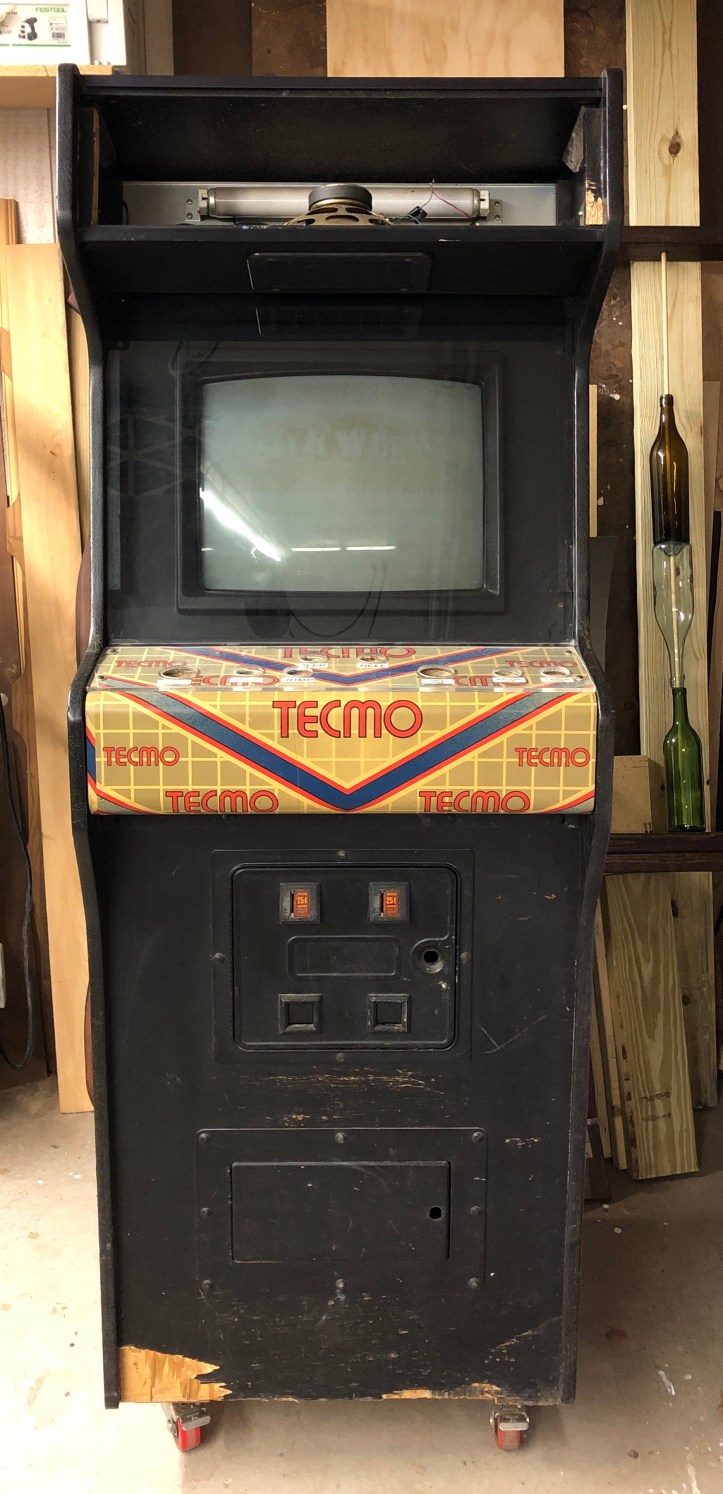

Here is the ugly duckling..
It’s up on a dolly so I can move it around.

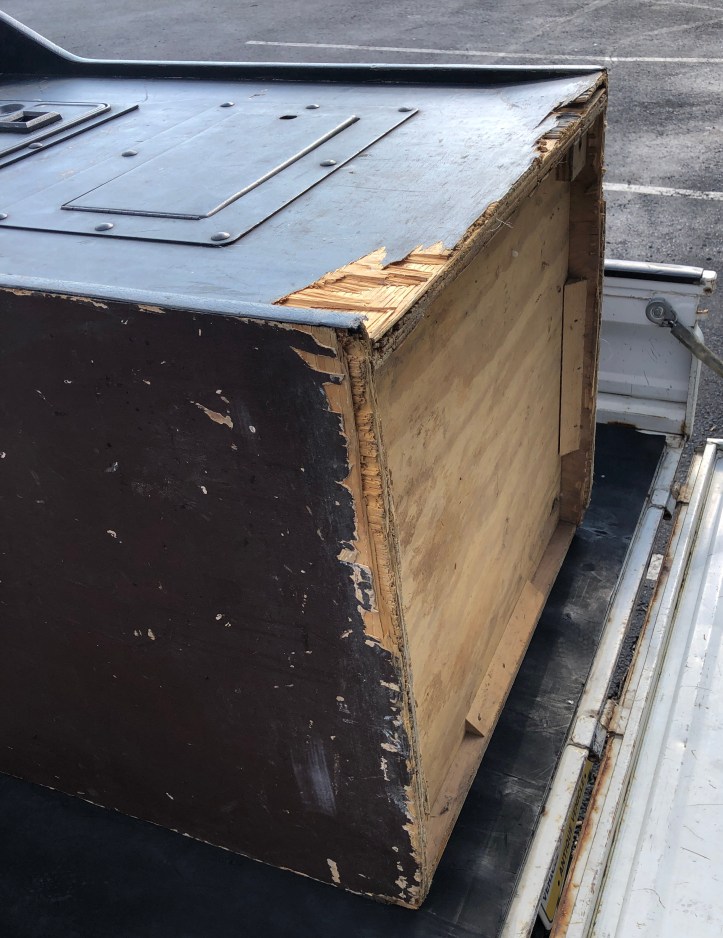

The cabinet is really beat up at the bottom.
I can repair the sides pretty easily. I was going to replace the front – except it has the cabinet serial# imprinted on it. I’d like to retain it.. but we will see how easily I can get the panels apart.

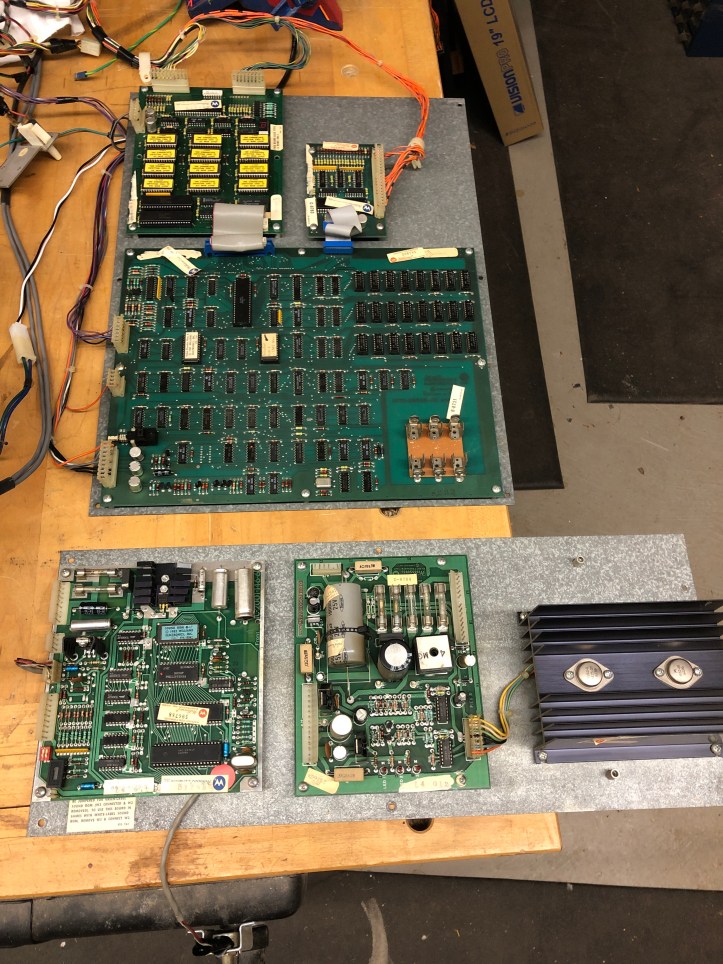

The board set on the other hand is in excellent condition. A to A+ just looking at it. I’m told it works perfectly – but I haven’t tried it yet. The boards were mounted in a Sinistar cabinet up under the monitor board face down. The entire original wiring harness was also in the Sinistar cabinet – door interlock switches, all of it! The owner made a clamp-on removable control panel with the Joust controls. When he wanted to use Joust – he clamped on the control panel, connected it to the Joust harness through the coin door and swapped the video cable at the monitor. It was two complete games in a single cabinet.
First Observations:
- Cabinet, Monitor and power supply are all the same serial number
- All of the system boards are the same serial number too.. Just a different one
- Monitor works – but has Silkworm burn in and the colors are pretty flabby.. I’ll recap it first and look for a potential tube swap
- Control panel is the original joust panel – but with many extra holes
- Control panel wiring harness is a bit of a mess
- Coin door can be restored to look new
- Marquee and bezel missing
- Did Williams really solder all of their connections vs. using wire connectors?
First step is to strip down the cabinet and repair the shattered plywood….
